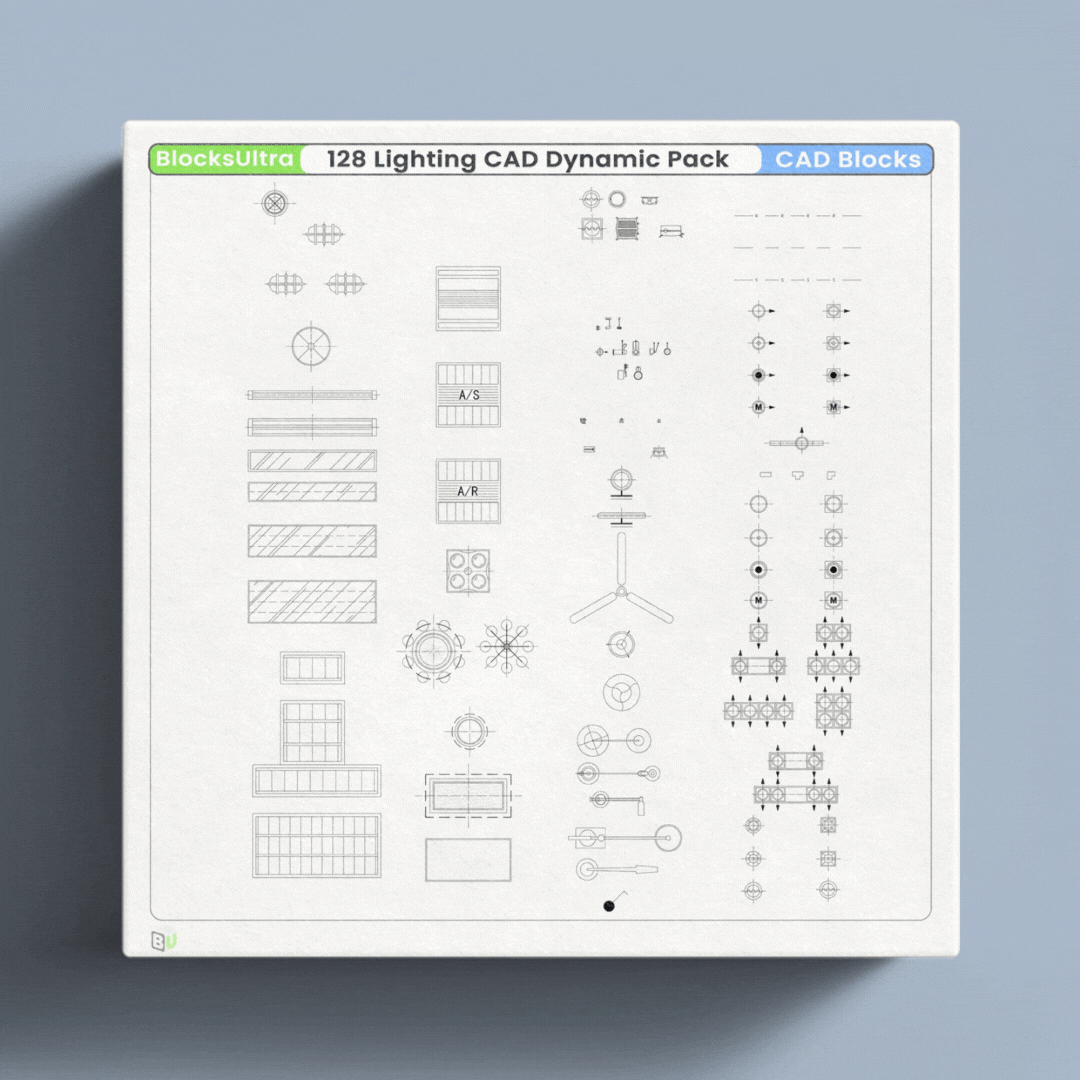

• Preview of lighting CAD dynamic blocks showing downlights, floodlights, in-ground lights, and legend symbols in top and elevation views

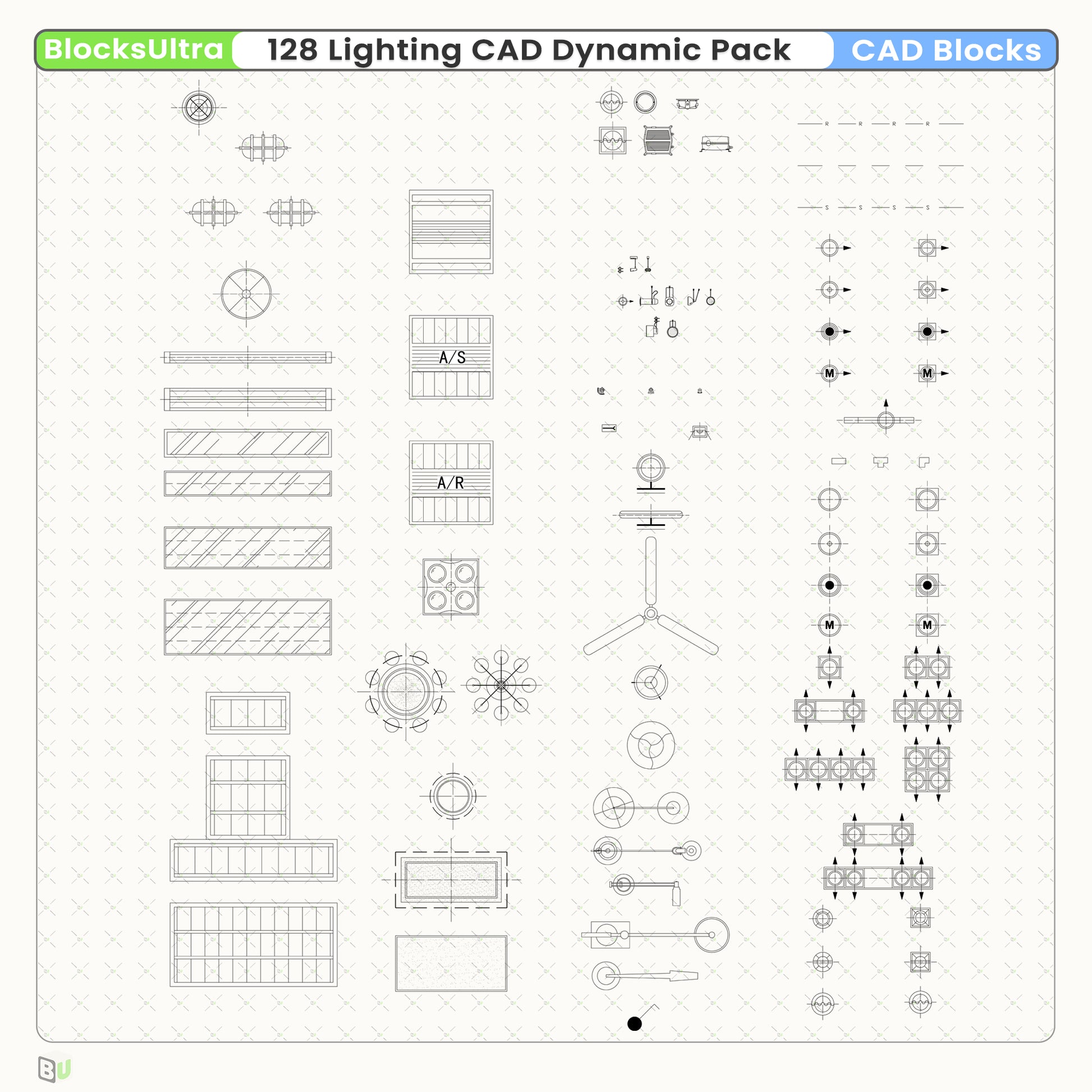

  • Overview of 128 lighting CAD dynamic blocks including downlights, floodlights, in-ground fixtures, and complete lighting symbol sets for architectural plans

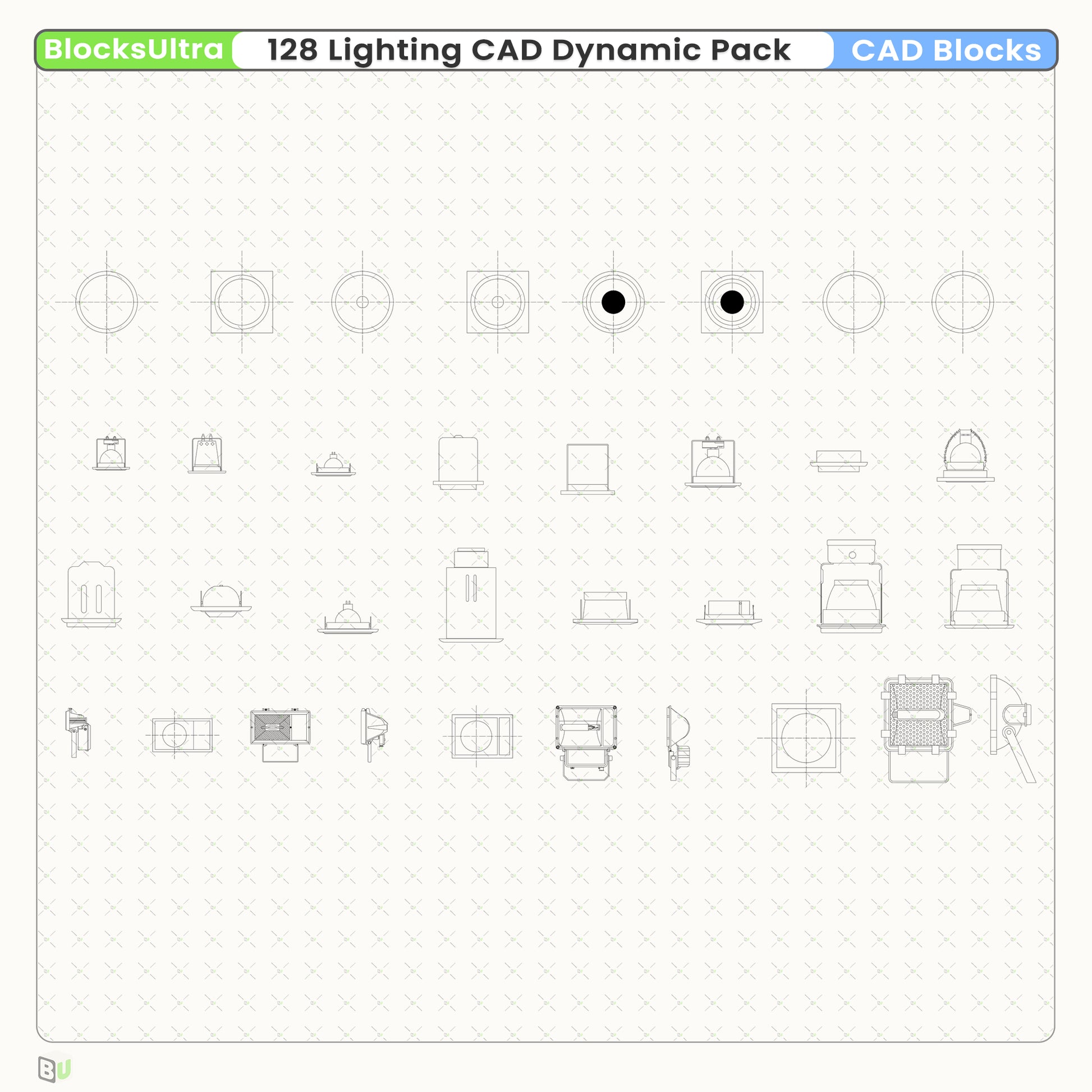

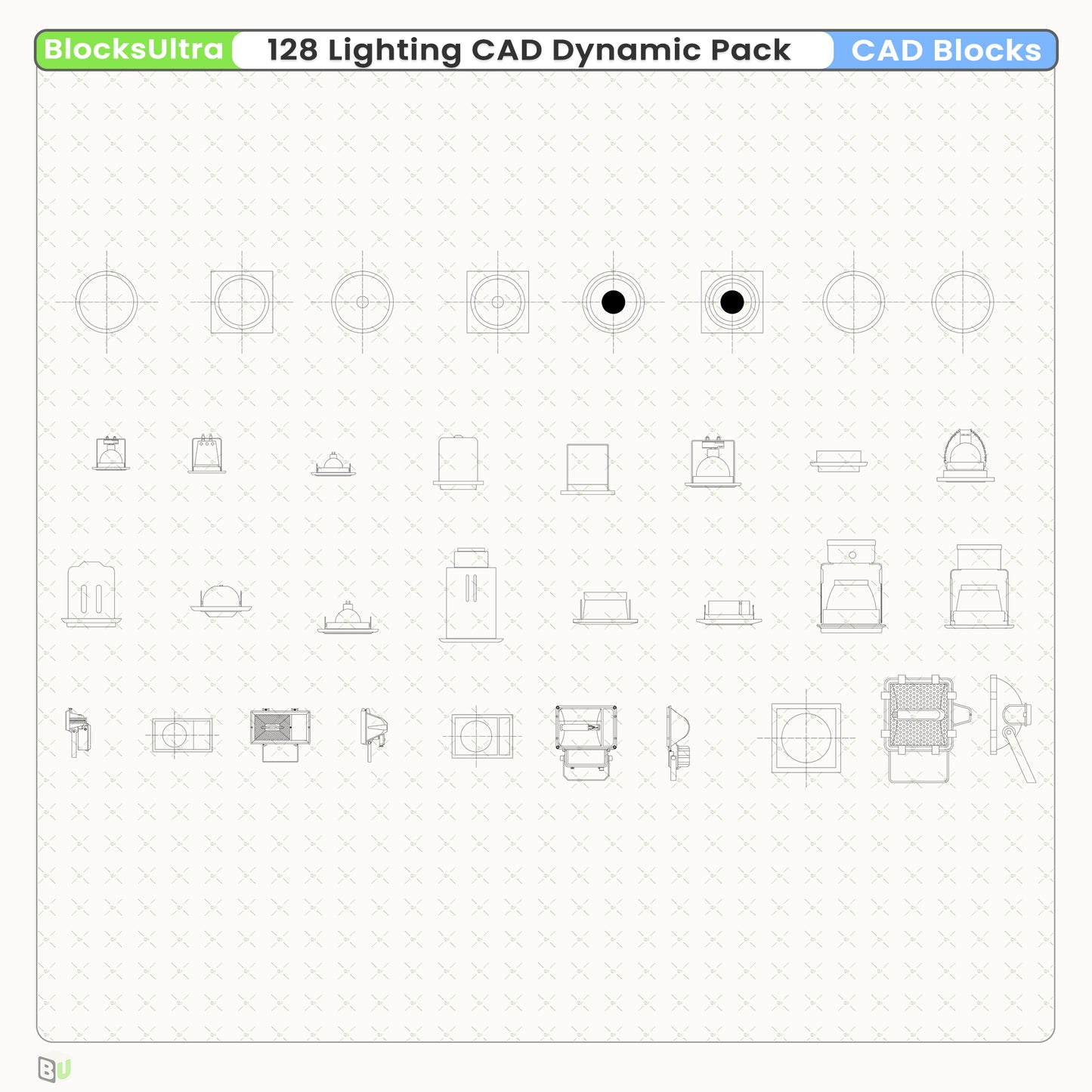

  • Downlight CAD dynamic blocks featuring multi-size round and square fixtures with top, front, and side views for architectural lighting design
  • In-ground lighting CAD dynamic blocks including round and square waterproof fixtures with top and side views for landscape and exterior plans

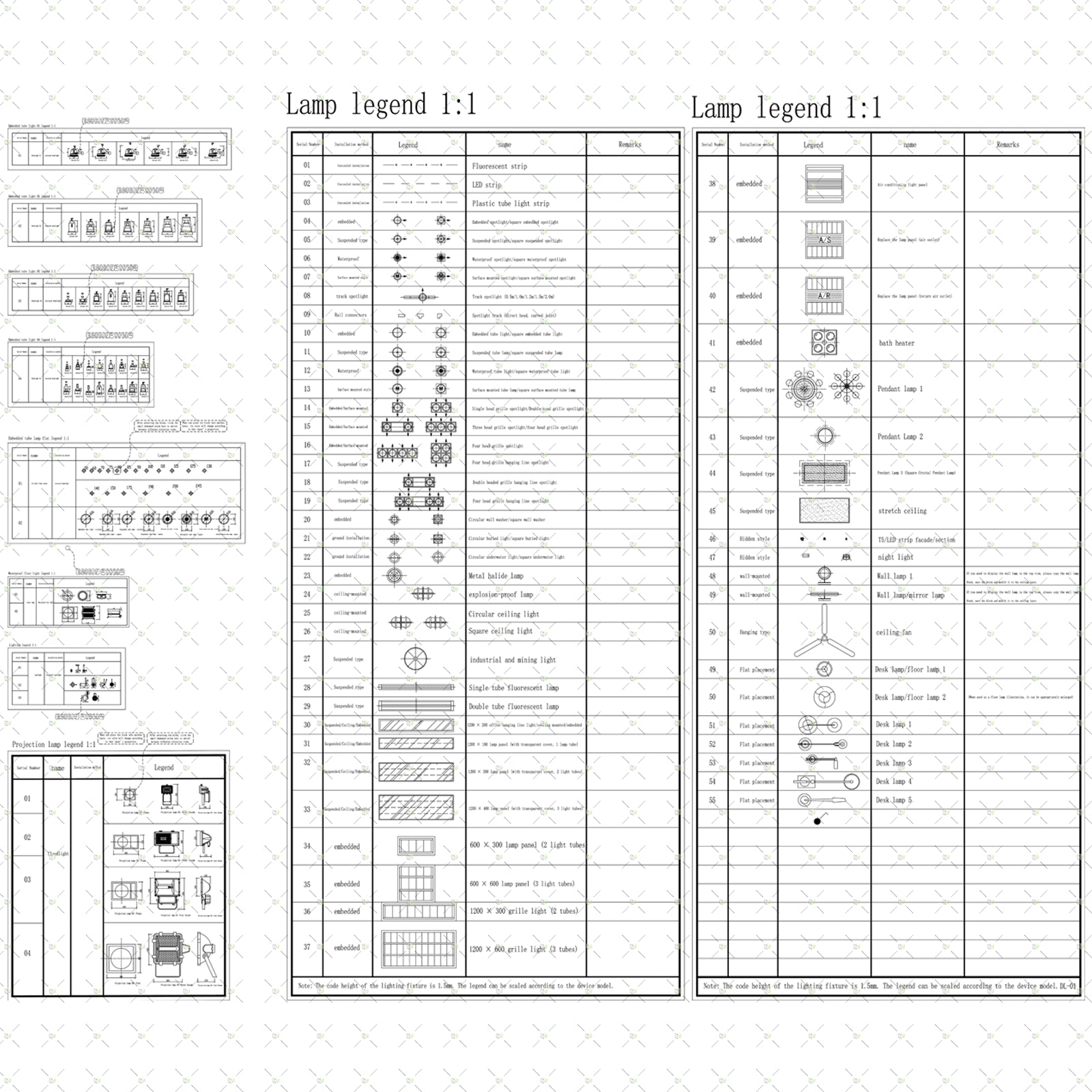

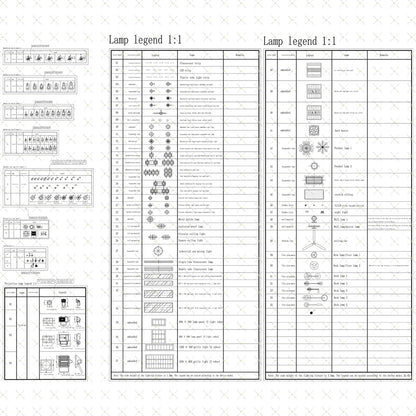

  • Floodlight CAD dynamic blocks showing front, side, and top views with clean linework ideal for architectural, exterior, and technical lighting drawings

128 Lighting CAD Dynamic Blocks Pack — Downlights, Floodlights & In-Ground Lights

128 Lighting CAD Dynamic Blocks Pack — Downlights, Floodlights & In-Ground Lights

$59.90
$59.90
Sold out
Product Details
This comprehensive lighting CAD block collection contains 128 professional symbols designed for architectural, interior, and MEP drafting. It includes multi-size downlights, waterproof in-ground lights, floodlights, pendant fixtures, ceiling lights, grille lights, spotlights, and complete lighting legend symbols. Each block is drawn with clean linework, consistent geometry, and multiple view types—top, front, and side elevations—for precise design communication.

The pack covers recessed, suspended, and surface-mounted downlights (round and square), track spotlights with connectors, waterproof and outdoor fixtures, wall washers, lamp panels, fluorescent units, desk lamps, ceiling fans, bath heaters, and a complete set of switch symbols (1–4 gang, dimmer, thermostat, voice control). This curated library provides a versatile, ready-to-use lighting toolkit for schematic design, technical documentation, and professional CAD workflows.

Formats: DWG (AutoCAD)
Formats Included
CAD

AutoCAD

Standard DWG/DXF formats, compatible with AutoCAD and most CAD software

Content Overview
128
Unique Designs
4 MB
ZIP (Unpacked Larger)
1
File Formats
∞
Scalability
$59.90
$59.90
SAVE Liquid error (snippets/price line 116): Computation results in '-Infinity'% Sold out

Lighting CAD block collection featuring 128 professional symbols for architectural, interior, and MEP drafting. Includes multi-size downlights, in-ground lights, floodlights, pendants, ceiling fixtures, grille lights, spotlights, and full lighting legend symbols. Clean, consistent linework with top, front, and side views ensures precise communication for schematic design and technical documentation. Covers recessed, suspended, and surface-mounted fixtures plus switches, desk lamps, ceiling fans, and bath heaters. Optimized for DWG workflows.
