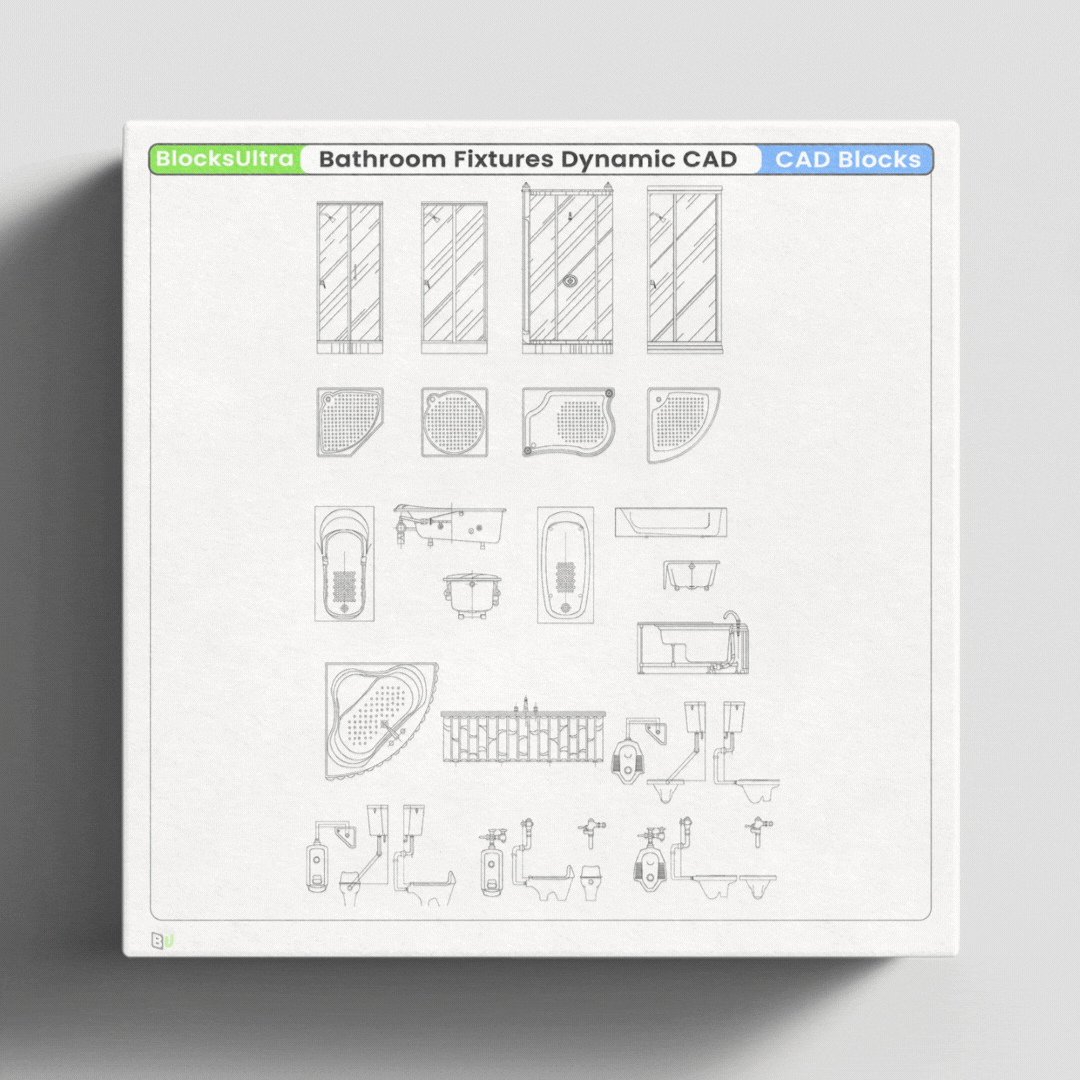

• Animated preview of dynamic bathroom CAD blocks switching plan and elevation views

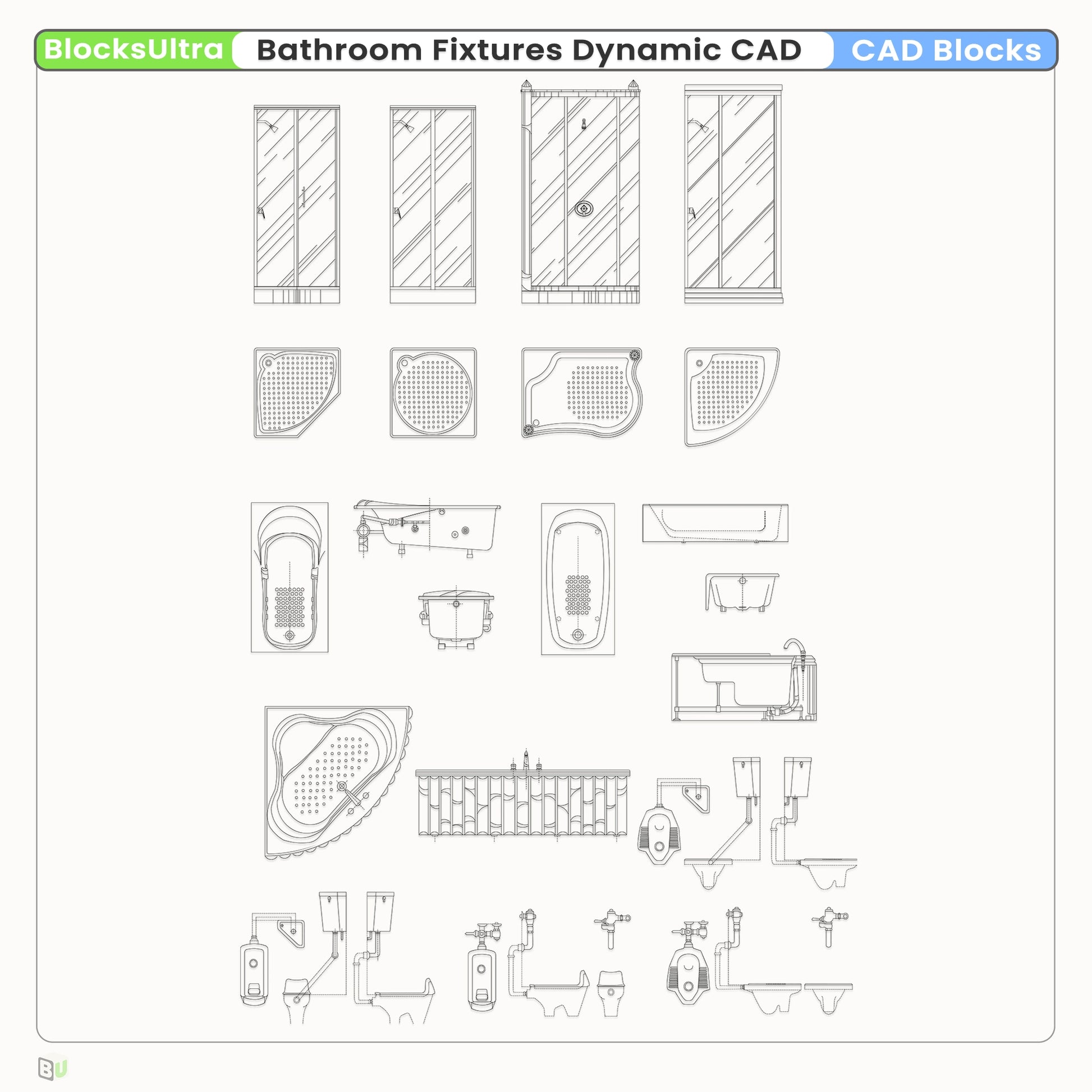

  • Dynamic shower enclosure CAD blocks with adjustable layouts

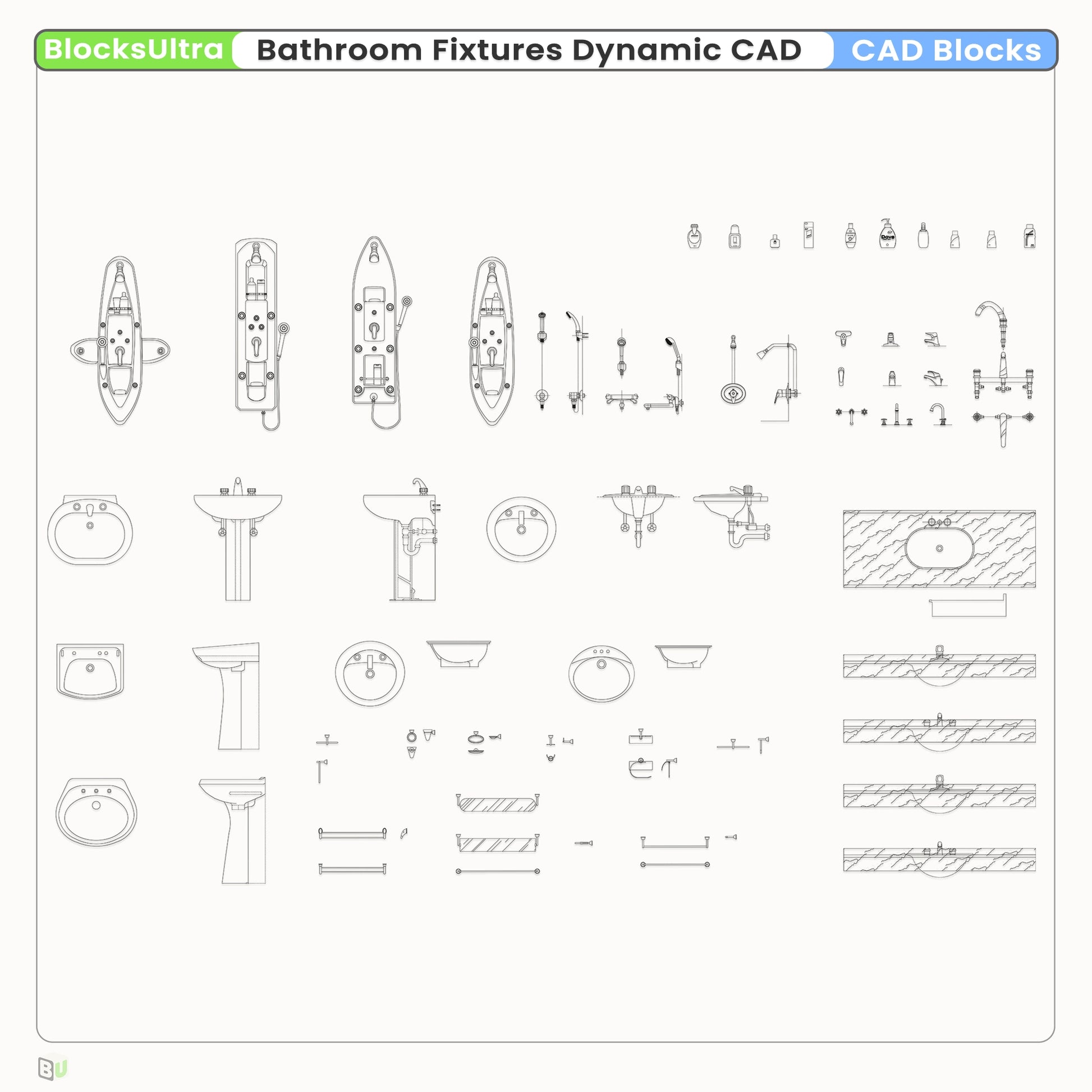

  • Dynamic toilet and sink CAD blocks with stretch and view switching

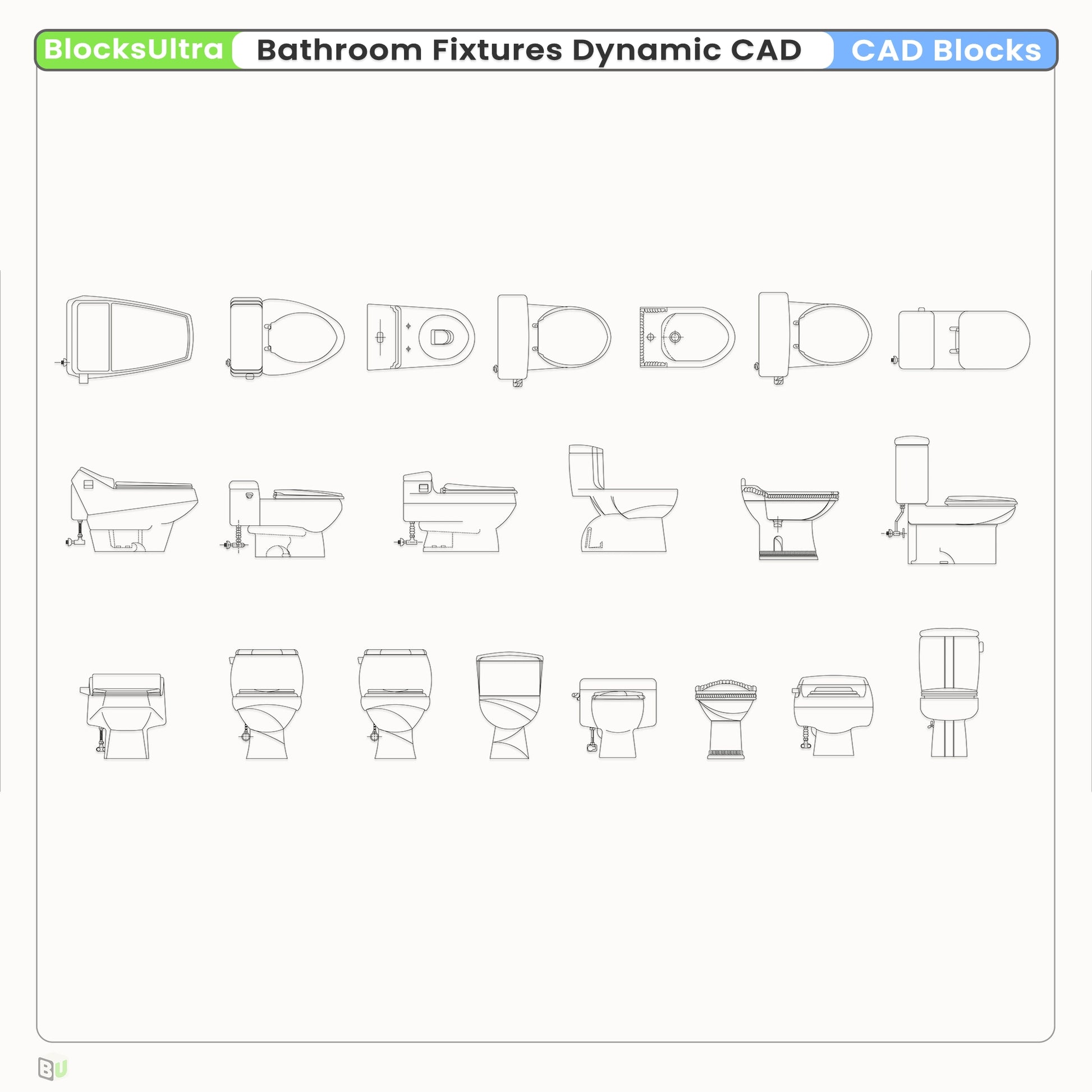

  • Dynamic faucet and shower head CAD blocks for bathroom layouts
  •

Bathroom Fixtures Dynamic CAD Blocks Bundle – Toilets, Sinks & Showers

Bathroom Fixtures Dynamic CAD Blocks Bundle – Toilets, Sinks & Showers

$49.99
$49.99
Sold out
Product Details
This professional bathroom fixtures dynamic CAD blocks bundle includes a complete set of sanitaryware and accessories designed for flexible architectural drafting. The collection covers one-piece and two-piece toilets, pedestal sinks, countertop inset sinks, bathtubs, shower enclosures, faucets, bidets, shower heads, and a full range of bathroom accessories.

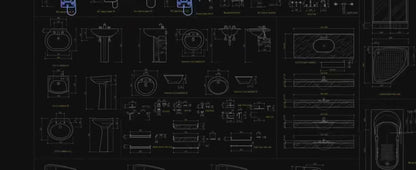

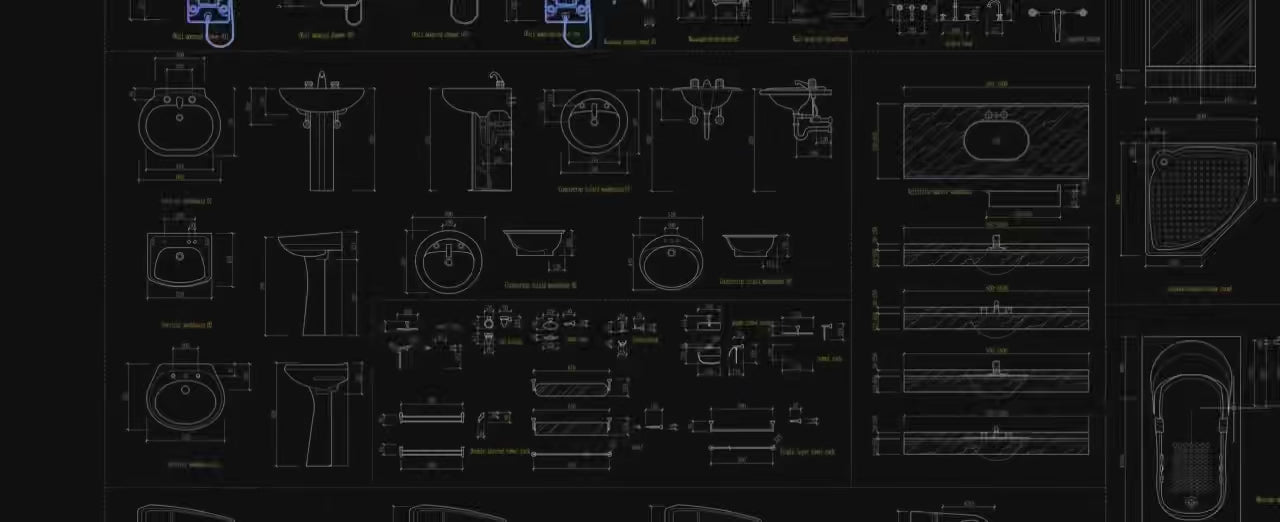

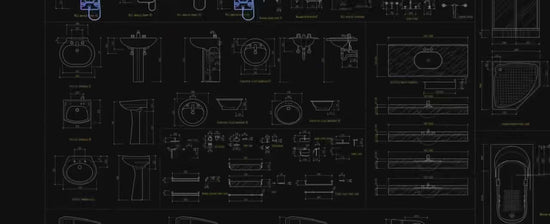

All blocks are created as dynamic CAD blocks with switchable plan views, front elevations, and side elevations. Many elements also include stretch parameters, allowing designers to freely adjust dimensions such as lengths, widths, and clearances while maintaining correct proportions and drafting accuracy.

Featuring clean linework, organized geometry, and consistent drafting standards, this dynamic CAD bundle significantly improves workflow efficiency. It is ideal for architects and interior designers working on residential bathrooms, hotels, apartments, and commercial restroom layouts.

Formats: DWG (AutoCAD)
Formats Included
CAD

AutoCAD

Standard DWG/DXF formats, compatible with AutoCAD and most CAD software

Content Overview
110
Unique Designs
4.5 MB
ZIP (Unpacked Larger)
1
File Formats
∞
Scalability
$49.99
$49.99
SAVE Liquid error (snippets/price line 116): Computation results in '-Infinity'% Sold out

This bathroom fixtures dynamic CAD blocks bundle provides a fully adjustable and professional drafting solution for architectural and interior design projects. The set includes one-piece and two-piece toilets, pedestal sinks, countertop inset sinks, bathtubs, shower enclosures in multiple shapes, faucets, bidets, wall-mounted and embedded shower heads, as well as complete bathroom accessory elements.

All components are built as dynamic CAD blocks with switchable plan views, front elevations, and side elevations. Selected elements feature stretch parameters, enabling designers to modify dimensions directly within AutoCAD while preserving correct proportions. Clean linework and organized geometry ensure smooth integration into professional workflows. This bundle is ideal for residential, hospitality, and commercial bathroom planning.
