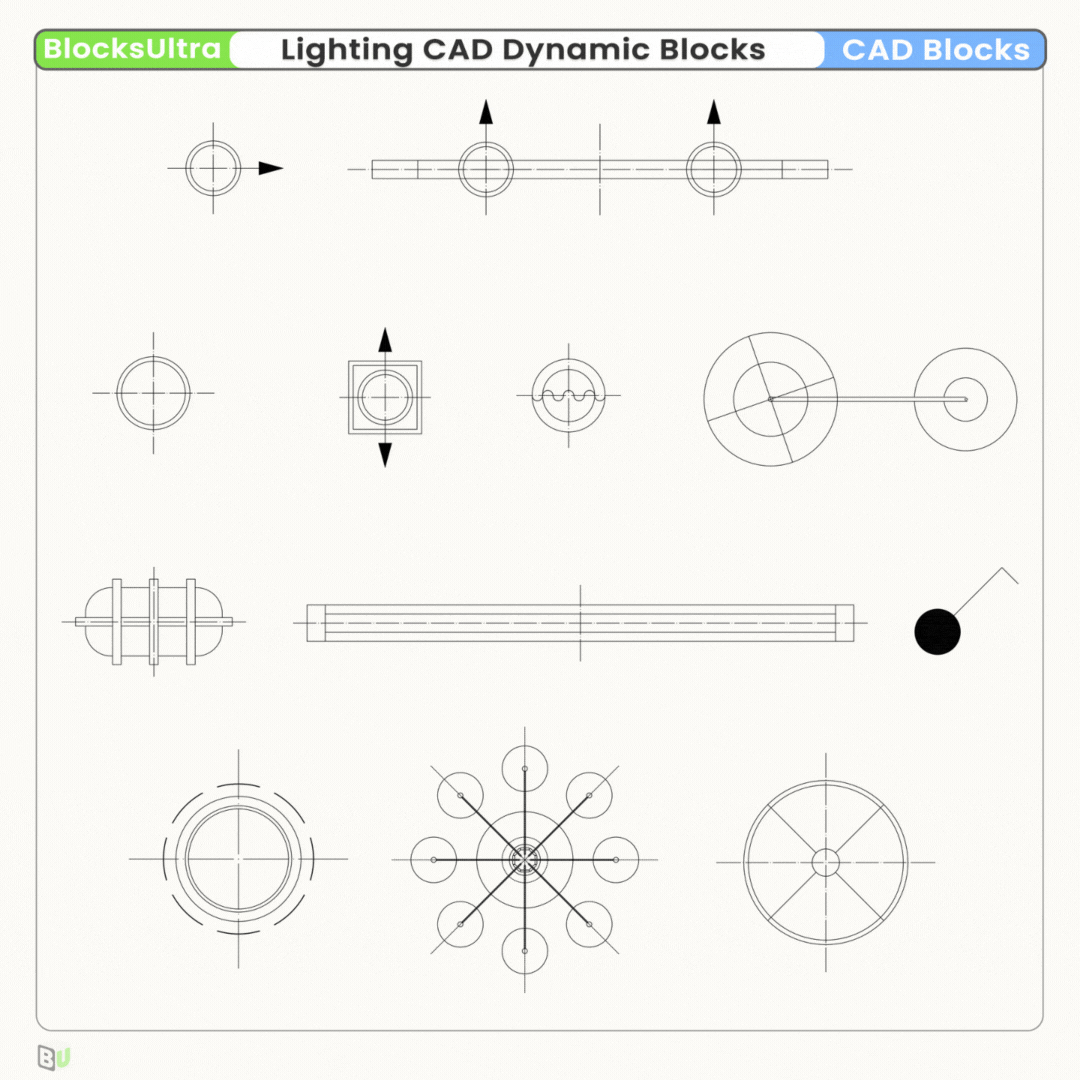

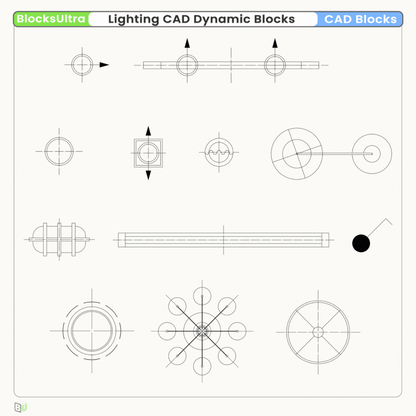

• Animated preview of 55 lighting CAD dynamic blocks showing multi-state visibility, switchable plan and elevation views, downlights, spotlights, track lights, grille lights, panels, pendants, switches, and ceiling fixtures
  • Lighting CAD dynamic blocks pack featuring 55 multi-state symbols with switchable plan and elevation views, including downlights, track lights, spotlights, panels, grille lights, pendants, switches, and ceiling fixtures

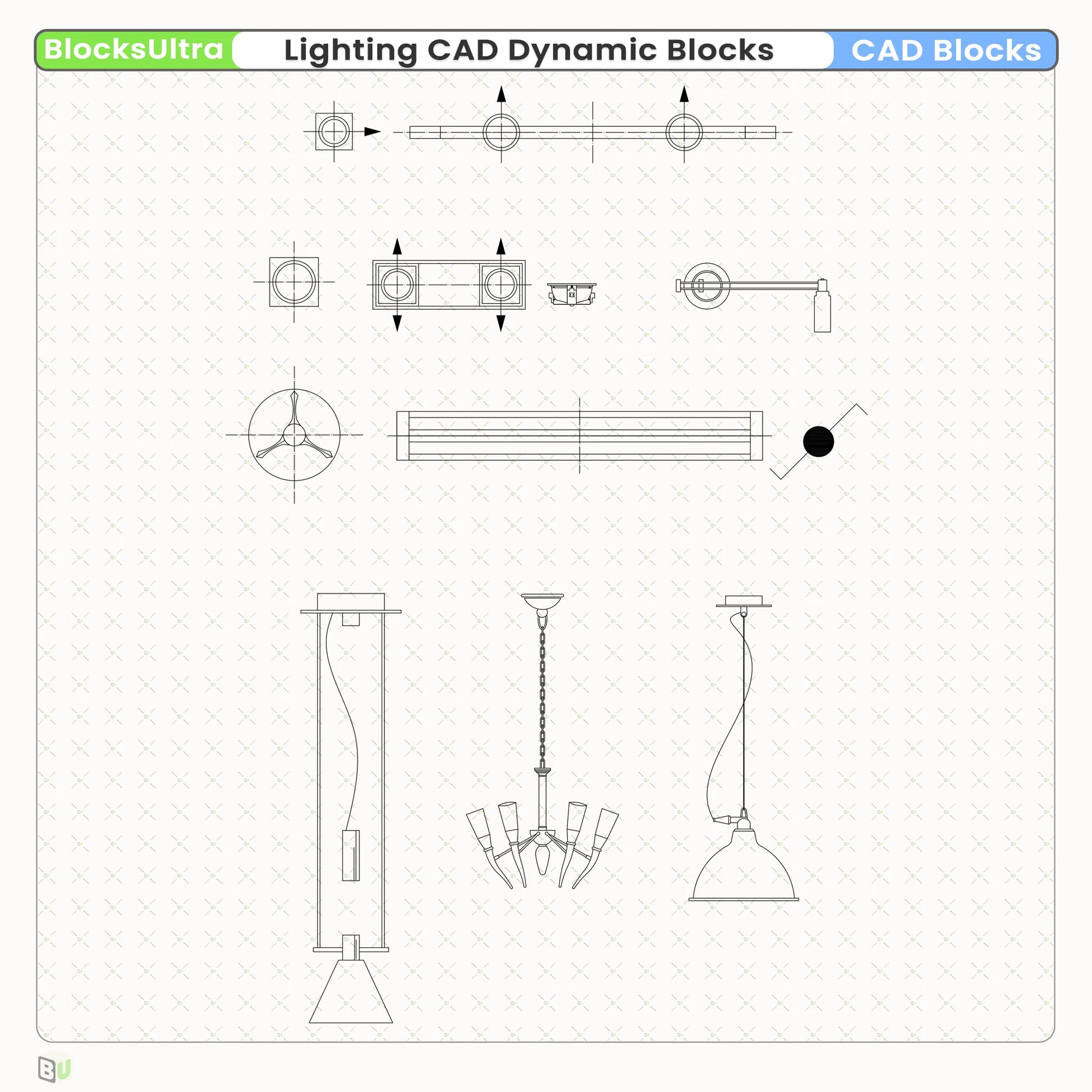

  • Recessed, suspended, and surface-mounted downlight dynamic blocks with visibility states allowing round and square configurations for architectural ceiling plan drawings

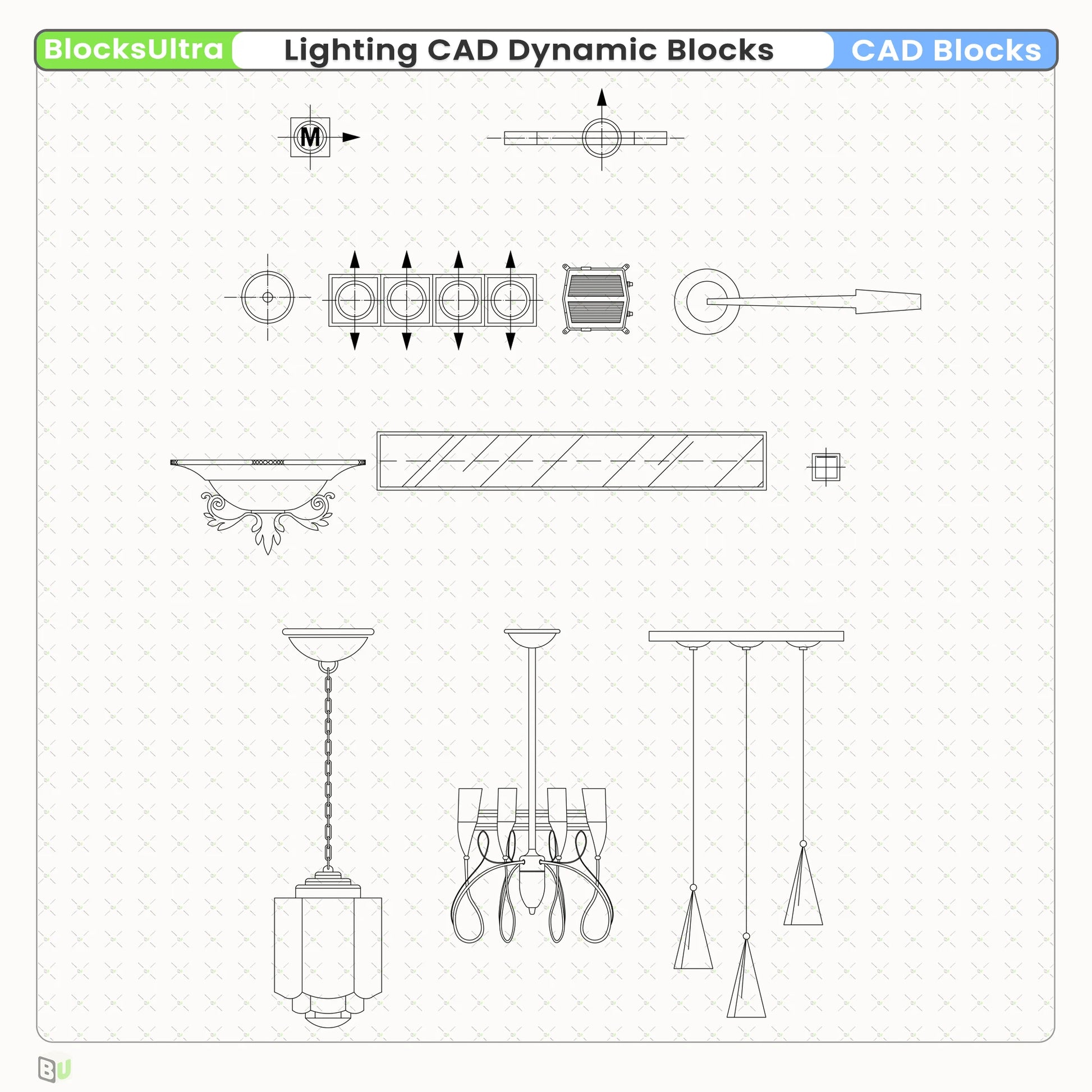

  • Track spotlight dynamic blocks with straight, T-joint, and L-joint rail connectors plus multi-view visibility options for professional RCP lighting layouts

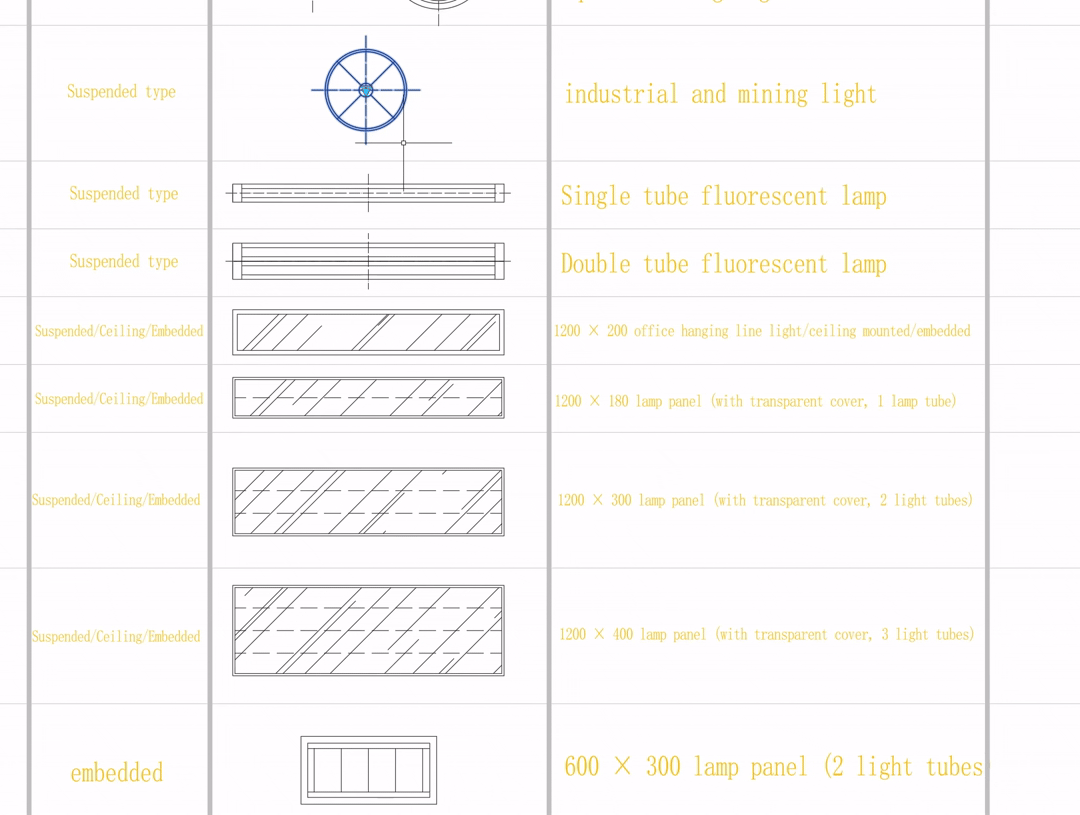

  • Animated demonstration of lighting CAD dynamic blocks featuring visibility states for multi-view switching, including recessed downlights, suspended spotlights, track fixtures, grille lights, lamp panels, pendants, wall washers, and electrical switches for ceiling plan workflows

Complete Lighting CAD Dynamic Blocks — 55 Multi-State Symbols

Complete Lighting CAD Dynamic Blocks — 55 Multi-State Symbols

$24.90
$24.90
Sold out
Product Details
This complete Lighting CAD Symbols Pack includes 55 professional blocks for architectural and interior ceiling plans.

The collection features recessed and surface-mounted downlights, track lights, rail connectors, waterproof fixtures, grille lights, fluorescent panels, wall washers, pendants, bath heaters, circular and square ceiling lamps, desk lamps, switches, diffusers, and ceiling fans.

All symbols use clean linework and consistent drafting standards, making them ideal for RCP drawings, lighting layouts, construction details, and design documentation.

Includes

Recessed, suspended & surface-mounted downlights (round & square)

Track spotlights & rail connectors

Waterproof spotlights

Grille lights (single, double, triple, quad)

Lamp panels & fluorescent fixtures

Wall washer lights

Ceiling light (round & square)

Pendant lights (multiple elevations)

Bath heater

Ceiling fan

Desk lamps 1–5

Switch symbols (1–4 gang, dimmer, thermostat, voice control)

Air-conditioning lamp panel & vent light box

Formats: DWG (AutoCAD)
Formats Included
CAD

AutoCAD

Standard DWG/DXF formats, compatible with AutoCAD and most CAD software

Content Overview
55
Unique Designs
1 MB
ZIP (Unpacked Larger)
1
File Formats
∞
Scalability
$24.90
$24.90
SAVE Liquid error (snippets/price line 116): Computation results in '-Infinity'% Sold out

Lighting CAD symbols pack featuring 55 professional blocks for architectural and interior ceiling plans. Includes recessed and surface-mounted downlights, track lights, rail connectors, waterproof fixtures, grille lights, fluorescent panels, wall washers, pendants, bath heaters, ceiling lamps, desk lamps, switches, diffusers, and ceiling fans. Clean, consistent linework supports RCP drawings, lighting layouts, construction details, and design documentation. All symbols are optimized for clear, reliable DWG workflows. Includes DWG format.
